Description

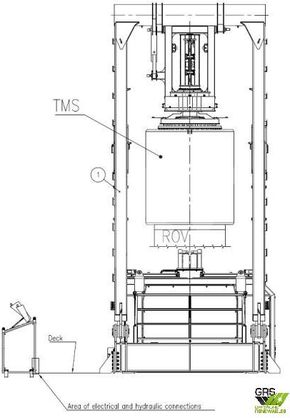

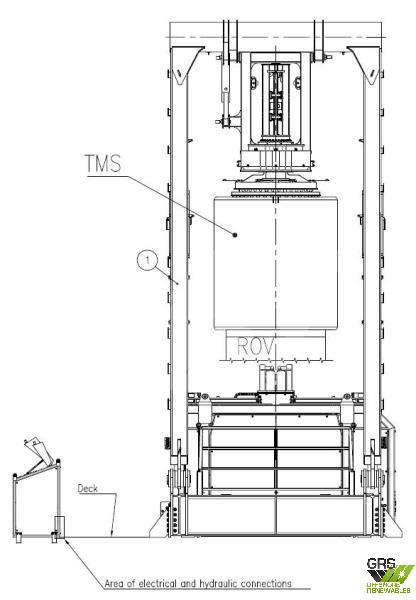

Mobile 10 Te A-Frame
Description
Classification Safe Area
Type Hydraulically powered A-frame with Docking Head
Certification/standard Designed in accordance with DNVGL-ST-0378
Dynamic Amplification Factor 1.7
Safe Working Load SWL 10 Tons
Operational Dimensions Length 7000mm, Width 3610mm, Height 9805mm (arc max)
Weight 18 100kg
Operating temperature -10°C up to +45°C

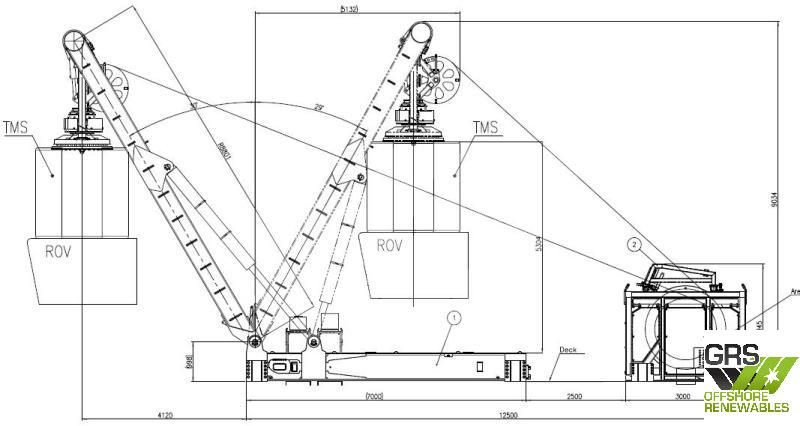

Deployed reach = 4100mm
Distance between legs = 2930mm
Docking Head
- Raise-lower snubber
- Side-swing snubber
- 270-degrees rotation on snubber
Controls
- Inboard / Outboard
- Docking head rotate
- Snubber
- Latch controls
- Emergency STOP
- System pressure (indication)

Mobile 10 Te SWL Umbilical Winch
Description
Classification
Safe Area
Type Hydraulically driven winch
Certification/standard Designed in accordance with DNVGL-ST-0378
Dynamic Amplification Factor 1.7
Safe Working Load SWL 10 Tons
Dimensions Length 4150mm, Width 3010mm, Height 3100mm
Weight 14 100 kg
Operating temperature -10°C up to +45°C
Drum Storage capacity 3300m (based on 30,5mm diameter umbilical cable)
Drum configuration Parallel-groove drum shells (LEBUS)
Speed 30m/min
Level-wind Automatic
Slip ring Focal 176, Not included
Controls Local, remote
Local control
- Pay-in / out
- Level-wind auto/manual
- Level-wind left / right
- Emergency stop
- Remote control switch
- Pay-out length Reset
- HPU running (indication)
- System Fault (indication)
- Pay-out length (indication)
Remote control
- Pay-in / out
- Emergency stop
- Pay-out length Reset
LOA 7 m
Beam 3,6 m

Specifications

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
