Description

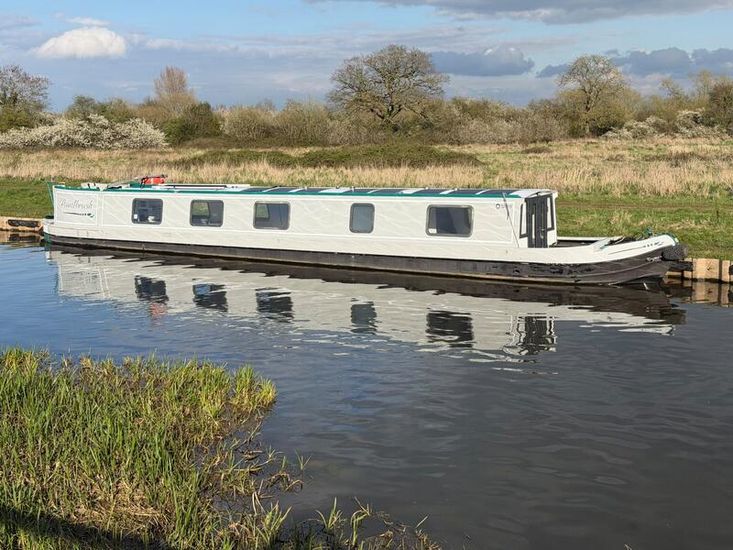

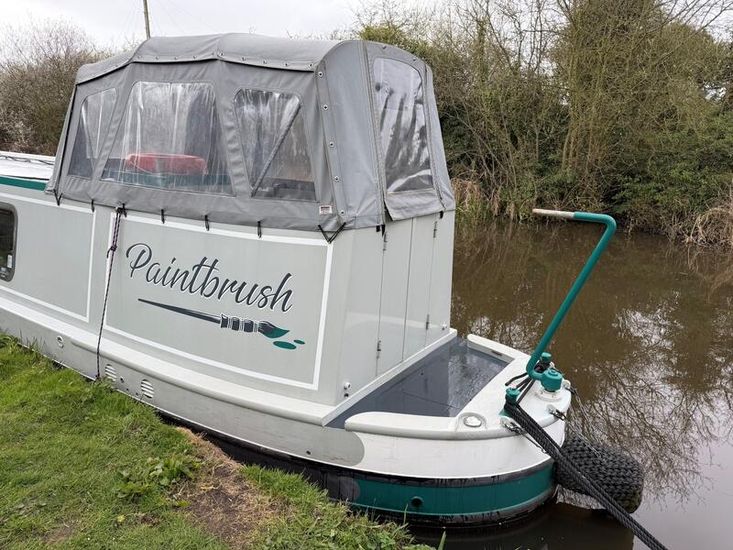

Ortomarine parallel hybrid electric narrowboat “Paintbrush” is reluctantly being sold by its American owners as they have now concluded their exploration of the English canals. This presents an excellent opportunity to buy a high spec, well cared for Ortomarine narrowboat at a fraction of the new cost and with no wait!

The advantage of the Hybrid Marine parallel hybrid system is that you can choose whether to cruise using the 50hp Betamarine diesel engine or the 10kW electric motor - giving the best of both worlds. Whilst cruising with the engine, the 775Ahr 48v battery bank is being efficiently charged and the calorifier is producing hot water. Featuring both bow and stern thrusters, manoeuvring the boat couldn’t be easier. There is no gas needed and all appliances are standard 230V – including an induction hob, full size washer/dryer, oven, microwave and fridge. With 1.2kW of solar on the roof, much of your summer electric cruising will be powered by the sun. The boat features Ortomarine’s “Ortomate” system – a comprehensive touch-screen boat management system which provides complete local and remote monitoring of the boat, including: intruder detection; tank levels & battery status; remote/local control of deck lights, central heating, hot water; GPS tracking; Wifi (SIM card not included); high gain antenna for exceptional mobile signal coverage. For full functionality, please contact us.

Built on a Tyler Wilson semi-trad stern hull, Paintbrush was originally completed in March 2020, at the start of the COVID epidemic. The American owners weren’t able to visit their new boat until August 2021 due to travel restrictions, so the boat spent most of its first 18 months on hardstanding. The owners have visited for summer cruising since then, with winters spent out of the water. Paintbrush is in very good condition for a boat of its age and has run for relatively few hours on both electric and diesel.

Inside the boat is extremely light and airy due to the extra large 42”x24” windows (double glazed with thermal break frames) and the light paintwork. One of the owners is an artist (hence the name of the boat) so lots of natural light was important in the design of the boat. The reverse-layout design features a good sized galley with quartz worktops and plenty of storage; the open plan living area has our highly flexible, multi-position, duplex dinette & 2 easy chairs; the walk-through bathroom has a Compoost toilet & large shower cubicle; the bow bedroom features extending single beds (which could be made into a large double) and plenty of storage.

Keenly priced and open to sensible offers to encourage a quick sale, Paintbrush is being sold with the entire contents, so is completely ready for new owners to move aboard and cruise away.

Please contact us for the full specification, further photos or to arrange a viewing.

Specifications

Accommodation

Galley:
Howdens Clerkenwell gloss white kitchen featuring Quartz grey worktops, filter tap with pull-out feature, composite granite sink, plinth drawers, pull-out larder base, pull-out dual bin store, and plenty of other storage. Appliances include:
• Panasonic NN-E27JWMBPQ microwave
• Beko UL584APW under-counter larder fridge (130L)
• Belling 2 zone Induction Hob
• Indesit Aria IFW 6340Single Multifunction Oven
• Indesit XWDE 751480X Washer/Dryer (A Energy Rating, 1400rpm Spin)

Open Plan Living Area:
• 2 x multi-function aisle dinettes, converting to 2 x single beds, or small double cross bed, or 2 x sofas, 2 x chaise longues, or additional seating for saloon area
• Small Freezer located in duplex dinette seat base
• 2 x large anthracite central heating radiators
• Built-in corner storage unit with cupboards, drawer and open bookshelves
• 2 x easy chairs

Walk-through, full width bathroom:
• Compoost Deluxe (stirring) composting toilet with external vent & liquid full alarm linked to Ortomate
• Roca vanity unit, in high gloss white finish, with storage drawers, large basin & mixer tap
• Large shower cubicle (700x1000mm) with Thermostatic Mixer Shower & automatic shower pump
• LED Shower Light with Extractor Fan
• Bathroom mirror with LED lights, heated de-mister pad plus shaver point
• 2 x towel radiators (with electric elements, to enable summer use without central heating on)

Bow Bedroom:
• 2 x 2ft2in x 6ft 3in fixed single beds (may be used as seating in the day), each with pull-out side extension
• Storage drawers & storage area under beds
• Memory foam mattresses with washable zip covers, 2 section – 6” section stored under-gunwale as a seat back for when bed extension not in use
• Touch activated, dimmable LED reading lights with built in USB charging points above each bed
• 2 x full height wardrobes with shelving & hanging below, with door operated LED lighting
• 2 x anthracite central heating radiators
• Blackout blinds for all windows

Open Plan Living Area

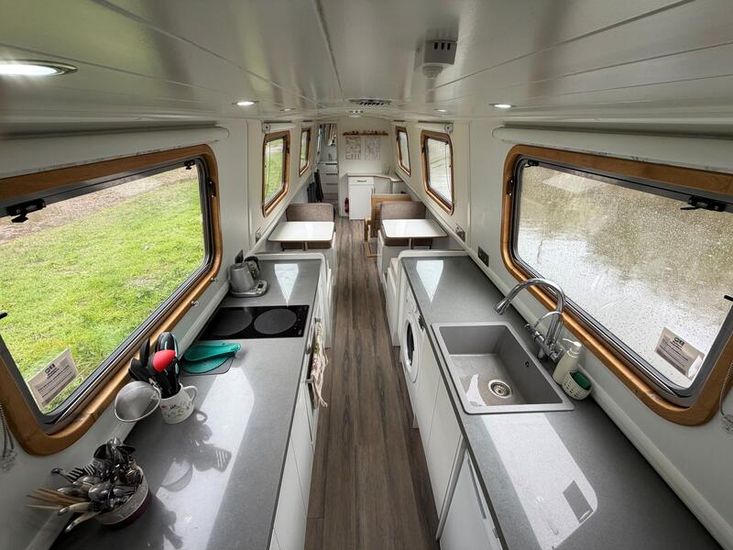

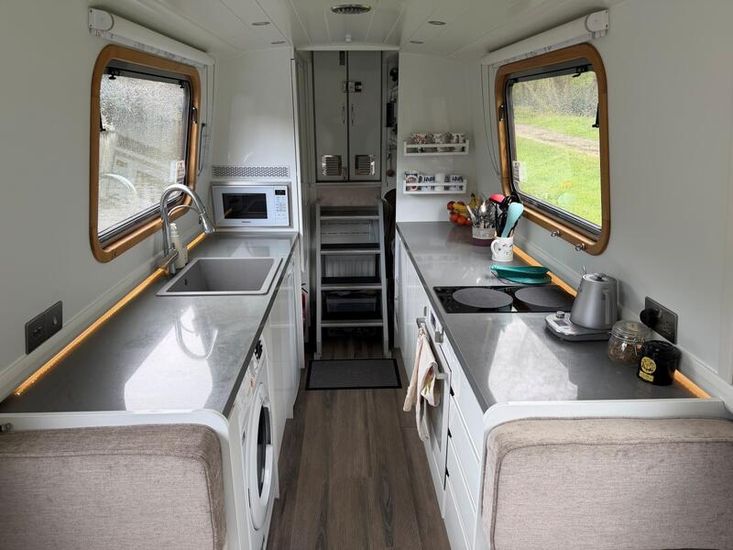

Galley

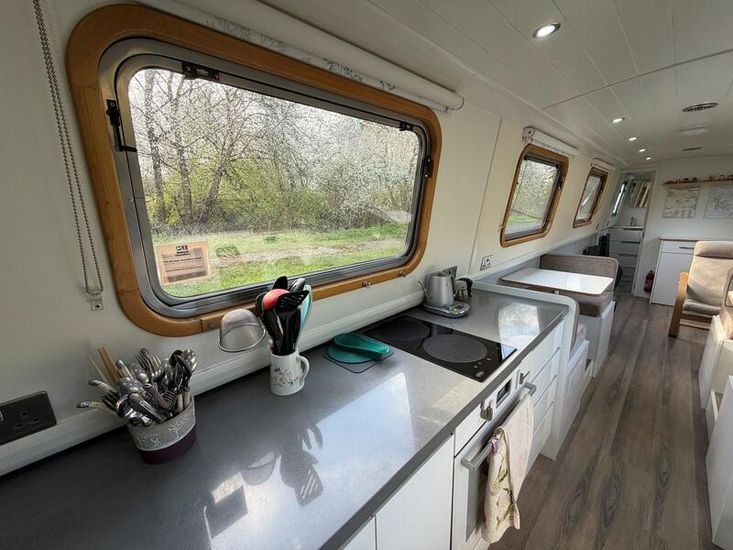

Starboard Galley

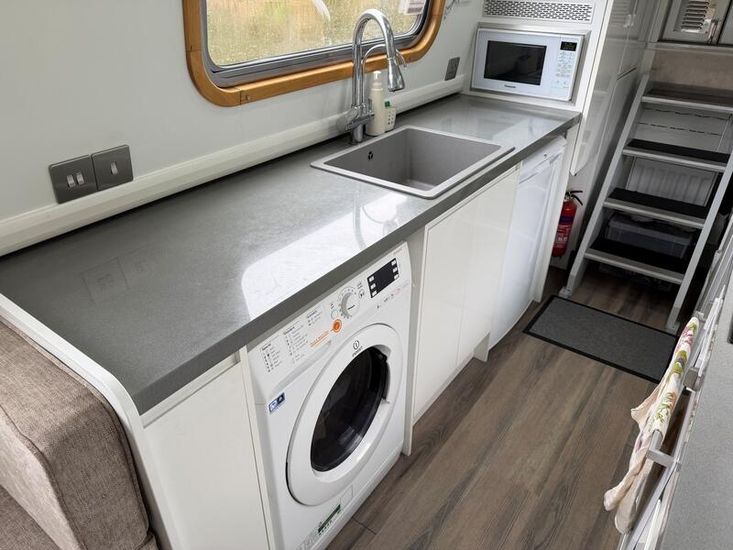

Port Galley

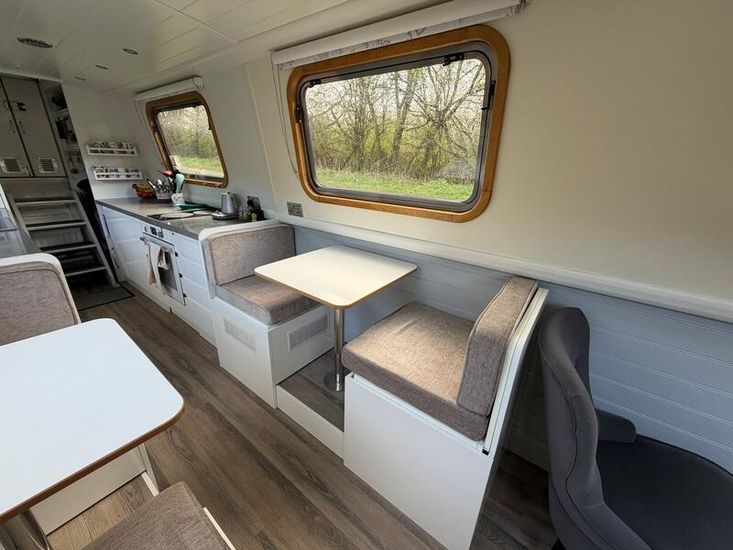

Duplex Dinette

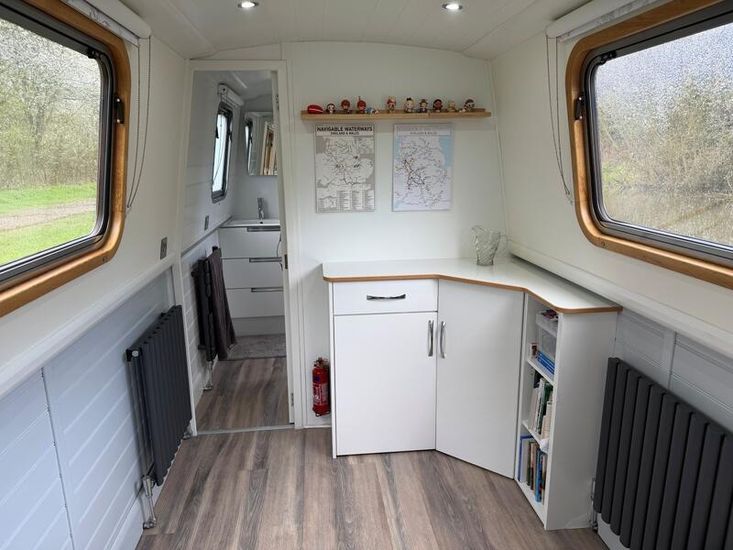

Saloon Storage

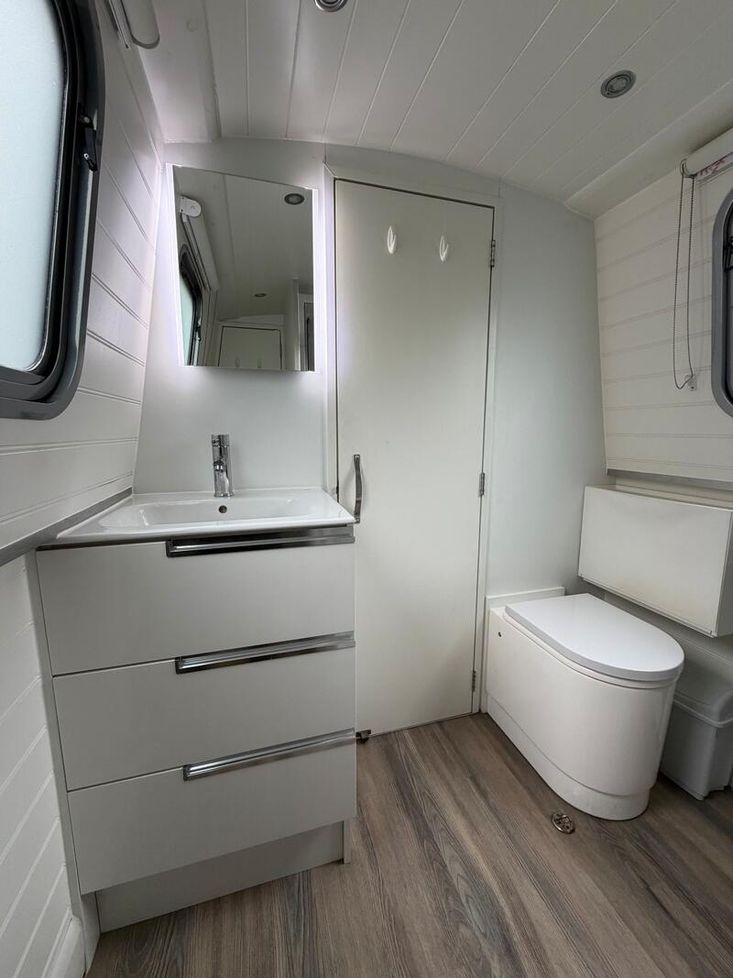

Bathroom

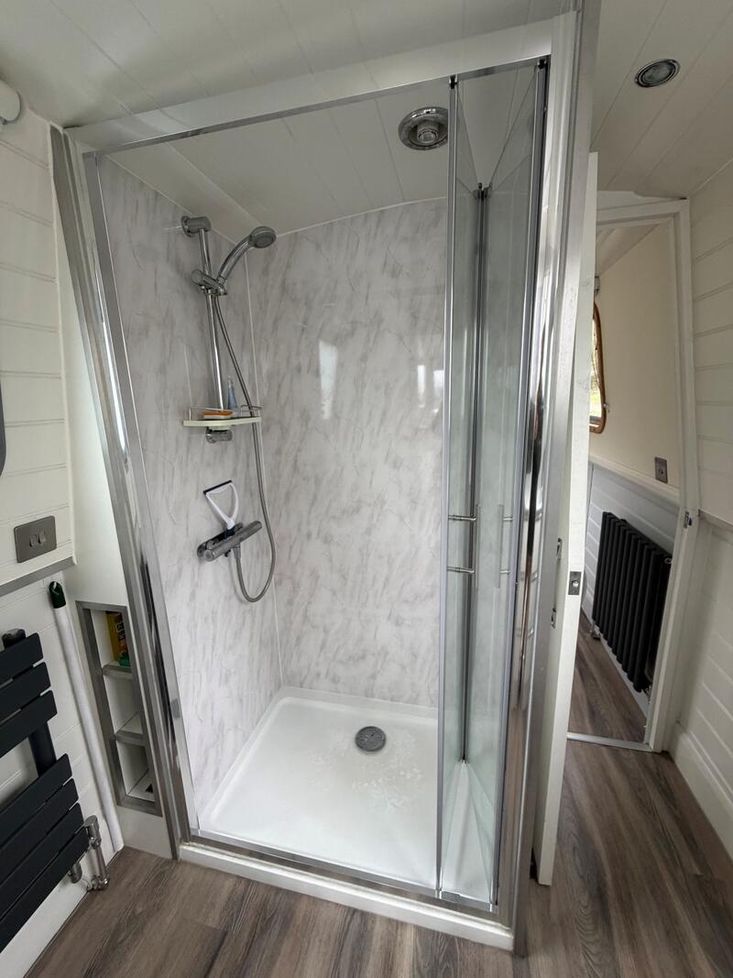

Bathroom - Shower

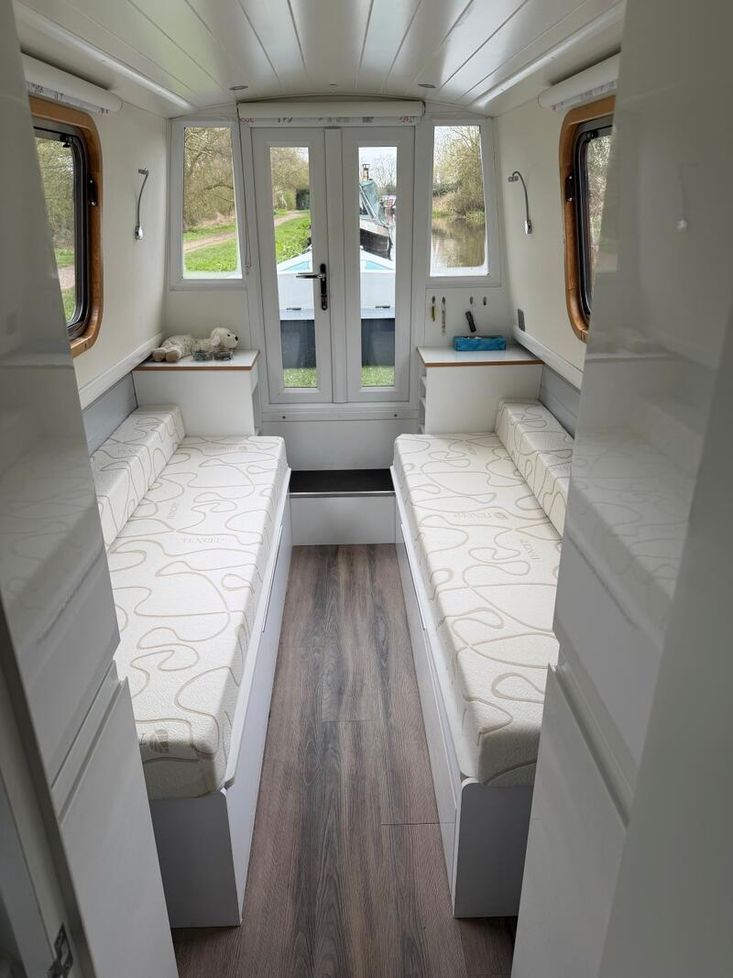

Bedroom

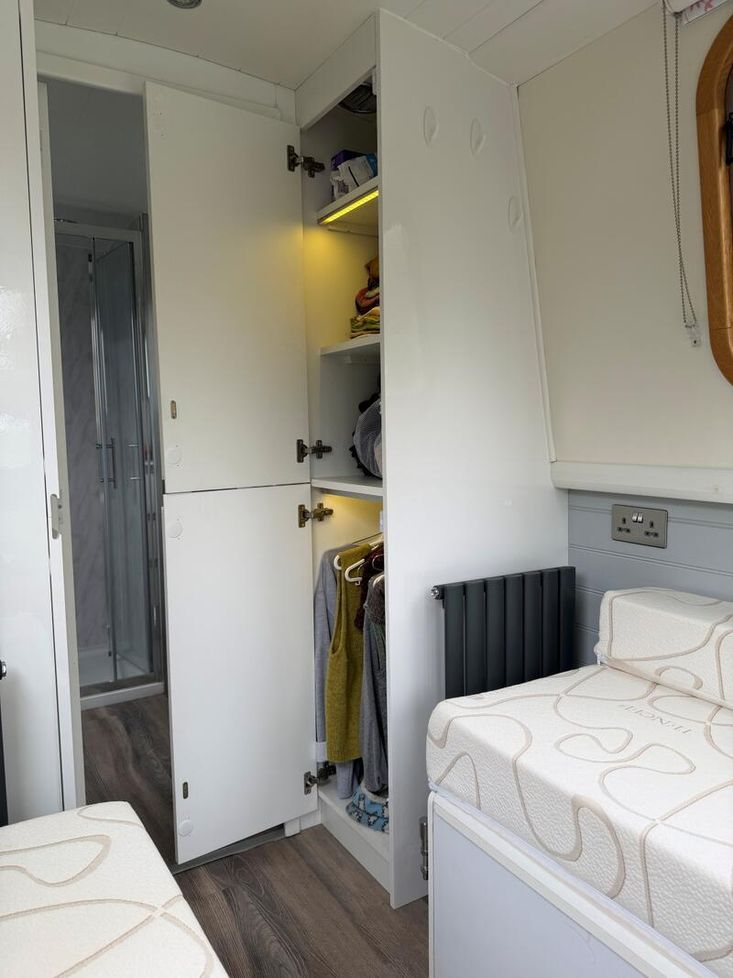

Bedroom - Wardrobe

Construction

• Tyler Wilson (Mike Christian) semi-trad Josher hull (Birmingham square design)
• Steel Spec: 10/6/5/4mm 275 JR A Grade
• Steelwork: Originally finished in Jotomastic 87 2 pack epoxy primer and Intertuf blacking (up to gunwale)
• Top Coat: Hand painted in Gloss Coach Enamel (main colour: RAL 7038 Agate Grey)
• Spray Foam Insulation throughout
• Cabin Head Height: 6’6”

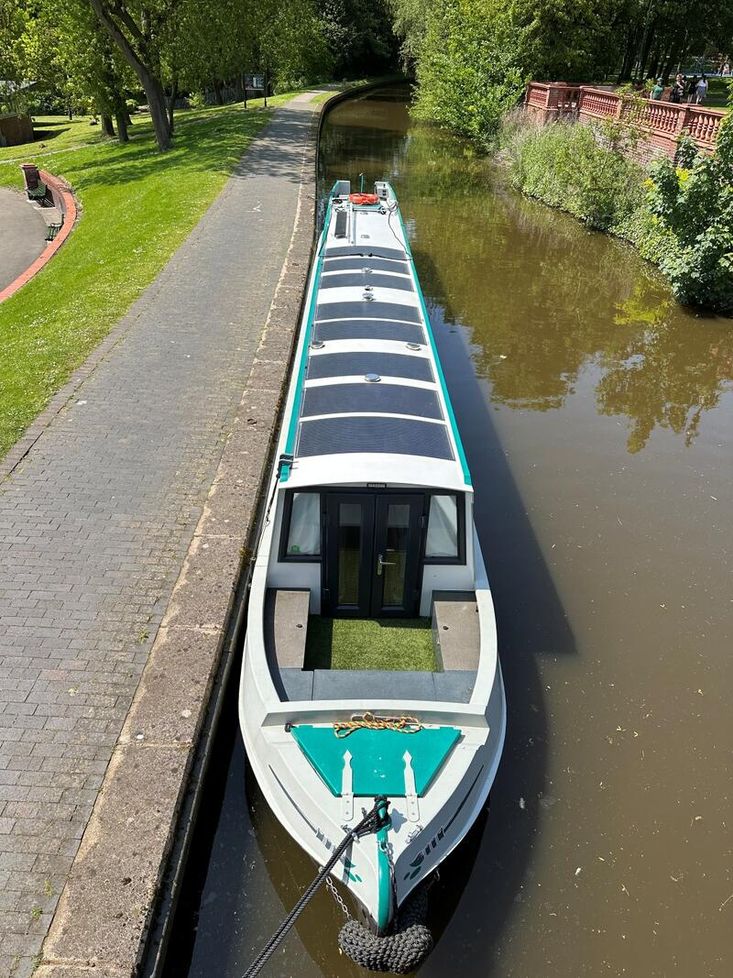

• 8 x 200W semi-flexible solar panels (full working order, but some age-related cosmetic damage evident)
• Caldwells double glazed thermal break full hopper windows (powder coated silver)
• Solid oak window liners
• Blacking History: Due. Not blacked since built (winters spent on hardstanding)
• BSS Test Certificate Expiry: 25/12/2027

Equipment

• Eberspacher D4W Hydronic Diesel Central Heating System (4.3kW)
• Hot water supplied by 54 Litre Twin Coil Calorifier heated by Eberspacher & the engine, plus electric element with control via Ortomate (remote/local/on-off/timed)
• Stainless steel fresh water tank mounted under bow deck
• Grundfos Scala 230VAC Water Pump (new in March 2022)
• LED lighting throughout with RGB under gunwale lighting

Engine(s)

Engine Room / Propulsion
• Base Engine: Beta Marine 50 HP diesel engine
• Hybrid Marine Enhanced Hybrid System providing 10kW Drive (8-12 hr duration) plus 7-8kW generation at cruising speeds, and 3kW of power generation when in neutral. To include:
o Battery Bank: 24 x wet traction cells, 48V @775Ah (housed in dedicated battery bay adjacent to engine room, access hatch above)
o Battery gas venting and topping up system
o Victron 5kVA (10kVA peak) charger/inverter with remote battery monitor
o Victron Cross Charger for 12V buffer battery
o Smart Morse control based on Ultraflex B85 Morse lever, adapted to provide control of electric motor when in electric drive
• Transmission: 3 blade bronze 18” x12” propeller,1.5" stainless prop shaft with Aquadrive CVB05.10
• ‘Hospital generator’ exhaust silencer
• Brass stern tube with remote greaser in the stern locker
• Bow thruster (Vetus BOWB065 – 65kgf - brushless motor)
• Stern thruster (Vetus BOWA0574 – 57kgf – brushless motor)

Beta engine run hours: 326
Electric motor run hours: 226

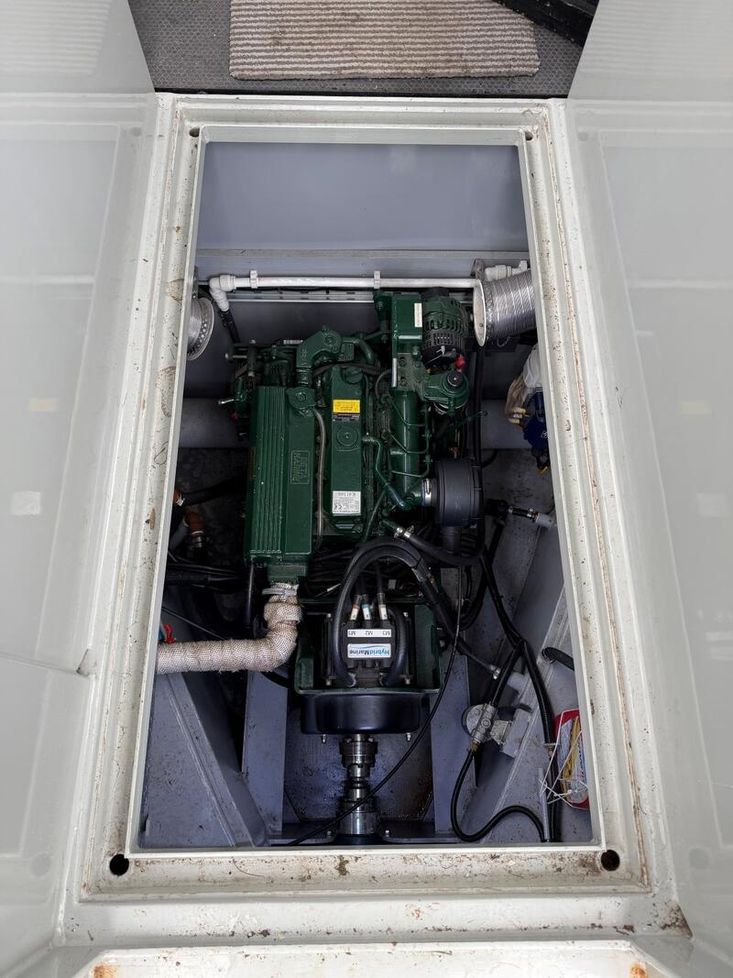

Hybrid Marine Engine

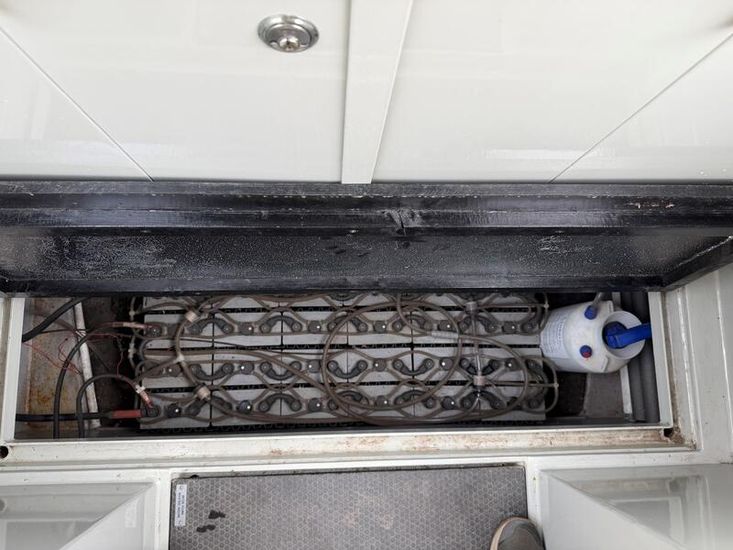

48V Battery Bank

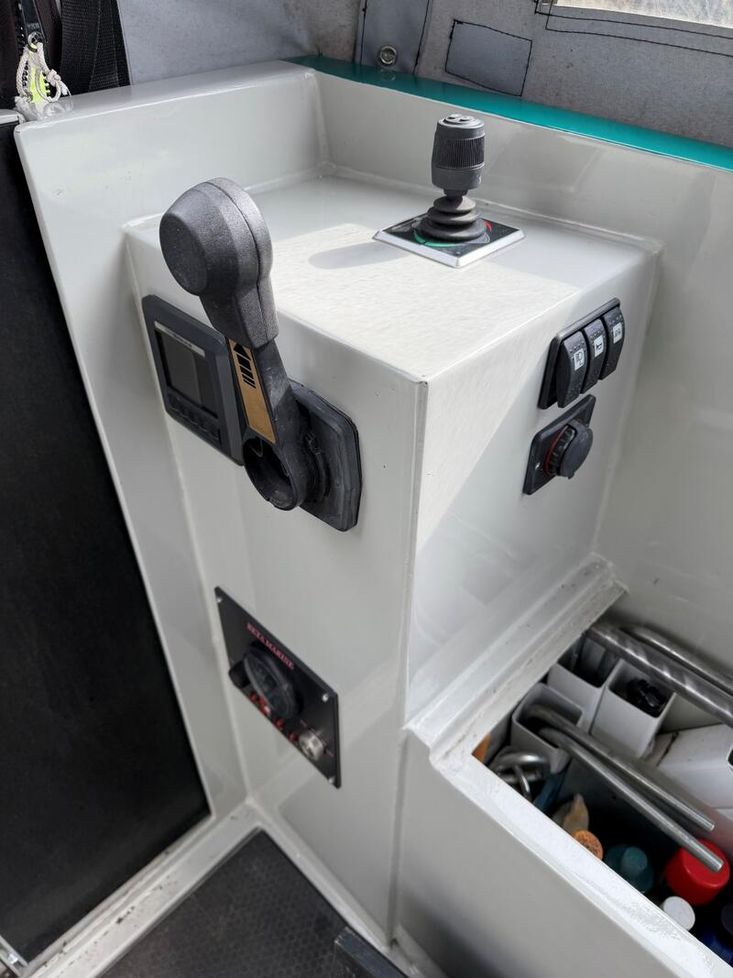

Control Column
