Description

Mirko is a reverse lay-out wide beam designed for low maintenance, extended cruising and all-year round living, with high levels of insulation, double-glazed windows and multiple heating/energy options. All of the main features of the boat, the Barrus engine (only 650 hours!), the Rolls batteries, the Victron based electrical system have been chosen as the best examples of their type and designed for many, many years of trouble free cruising.

The hull and engine cabin is built from continuous steel plates 10/6/4 with a V-bottom for extra stability in the wind. The main-cabin is an innovative design with reinforced timber walls that maximise the interior living space, clad on the exterior with Western Red Cedar which is naturally weather-proof for up to 30 years, without the need for costly treatments or painting. The modern interior is fitted with bespoke furniture made from sustainably sourced or reclaimed mahogany, birch and pine with a solid oak floor throughout. External 5G aerial fitted. Blacked April 22. Full survey from October 2021 available.

Specifications

Accommodation

Kitchen

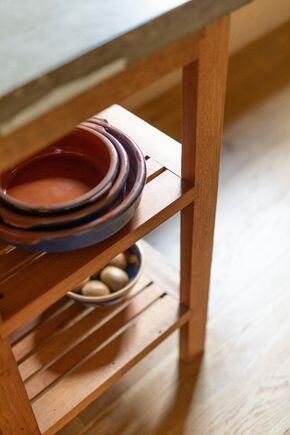

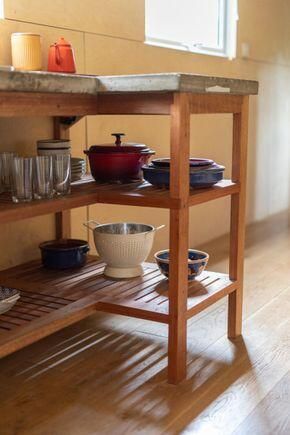

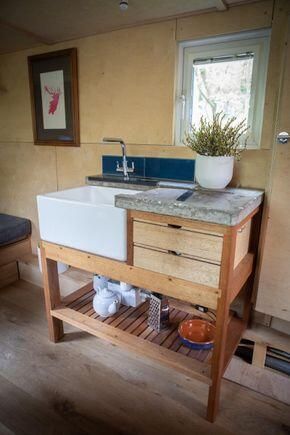

- Units made from salvaged mahogany with cast concrete worktops.
- Belfast sink.
- Liebherr TP1760 Under Counter fridge.

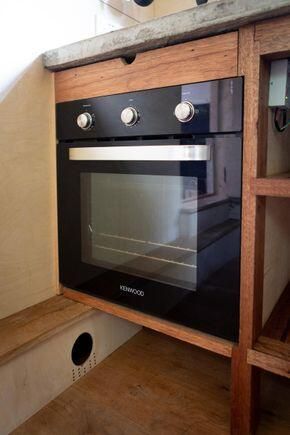

- KENWOOD KS100G Gas Oven.
- Neff 4 zone gas hob.
- LPG gas alarm.
- Aerial point for 4G/5G external antenna/modem

Dining area
- Fitted corner seat made from salvaged mahogany and birch.
- Table made from Ercol oak refectory table-top with collapsable mahogany legs.
- Option to convert into a double bed as a guest birth.
- Drawers and bulk storage underneath seating.

Bedroom
- King size bed.
- Chest of drawers made from solid pine.
- Storage below bed and in forward bulkhead

Bathroom

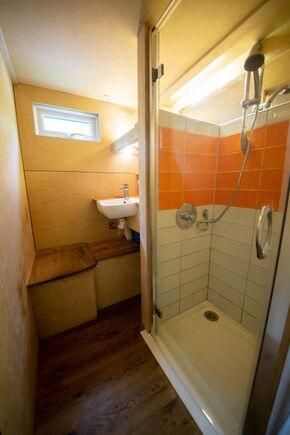

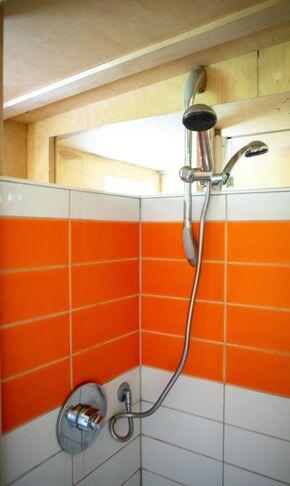

- Standard size domestic shower cubicle with high-pressure shower unit.

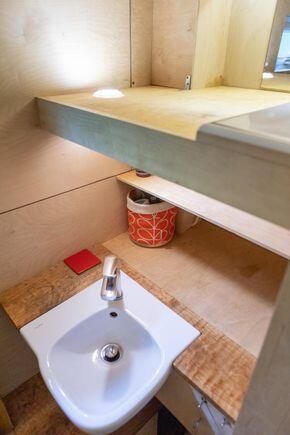

- Vanity basin with storage.
- Compost toilet fully vented to the outside.

Construction

Hull
- Steel hull + engine cabin built by RLL Boats in Keynsham.
- 10mm bottom plate with V-bottom, 6mm sides with 4mm engine cabin. Single, continuous plates.

Cabin
- Interior Head Room 6’4” to 6’5”
- 9mm birch ply interior panels with 18mm birch ply bulkheads.
- 20mm solid oak floating floor.
- Reinforced timber frame.
- Roof is made of 18mm Sterling OSB3 with 1.5mm industrial grade EPDM.
- Fully vented ceiling throughout to minimise damp and condensation.
- 22mm western red cedar cladding on the exterior.

Heating and Insulation
- A-rated double glazed uPVC windows.

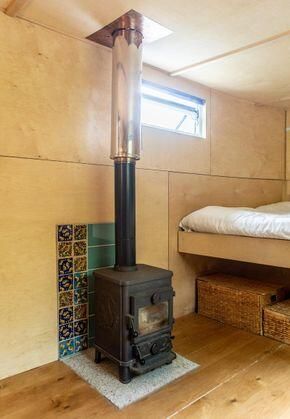

- 5kw Multi-fuel stove - Morso Squirrel.
- 90mm kingspan silver backed thermal board in roof.
- 90mm spray foam insulation in the walls with Airguard reflective membrane.

Plumbing
- Hot and cold water throughout.
- 785L water tank made from polypropylene by Goodwin Plastics.
- 55L vertical single coil Surecal calorifier with 1kw immersion heater.
- Jabsco fresh water pump 25psi.
- 8L Accumulator tank + 8L Expansion tank.

Electrics
- 12v and 240v throughout the cabin.

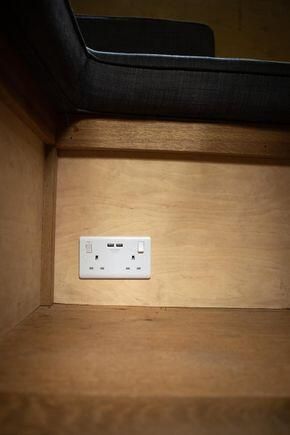

- LED lighting, 240v domestic sockets + USB, 12v USB sockets.
- 1kw solar array: 4 x 270w Jinko PV Solar panels. (basically never need to charge batteries from engine from mid-Feb to mid-Nov which explains why engine is only at ~650 hours)

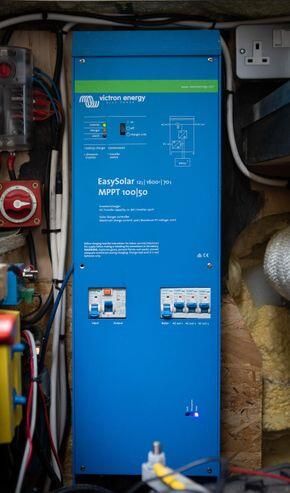

- Inverter / charging: Victron Easy Solar 1600VA, with MPPT 100/50 + BlueSolar MPPT 50A charge controller 100V input 12/24V output.
- Batteries: x2 Rolls Solar AGM Series 2, 12V, 400Ah.
- Victron Precision Battery Monitor 6.5-95VDC, inc shunt.
- Shoreline with Victron Galvanic Isolator VDI-16.
- TP-Link AC1200 4G+ Cat6 Wireless Dual Band Gigabit Router
- Poynting XPOL-1 V2 5G 3dBi Omni-Directional Cross Polarised LTE 2x2 MIMO Outdoor Antenna

Engine(s)

- Barrus Shire 40, 2018.
- 650 hours.
